The
JBL® Club A1000 mono subwoofer amplifier delivers 1000 Watts RMS utilizing a Class-D amplifier design to ensure high output and minimal current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory-installed radio. The low-pass filter and variable bass boost can be used to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass blends well with your full-range speakers.
Features:

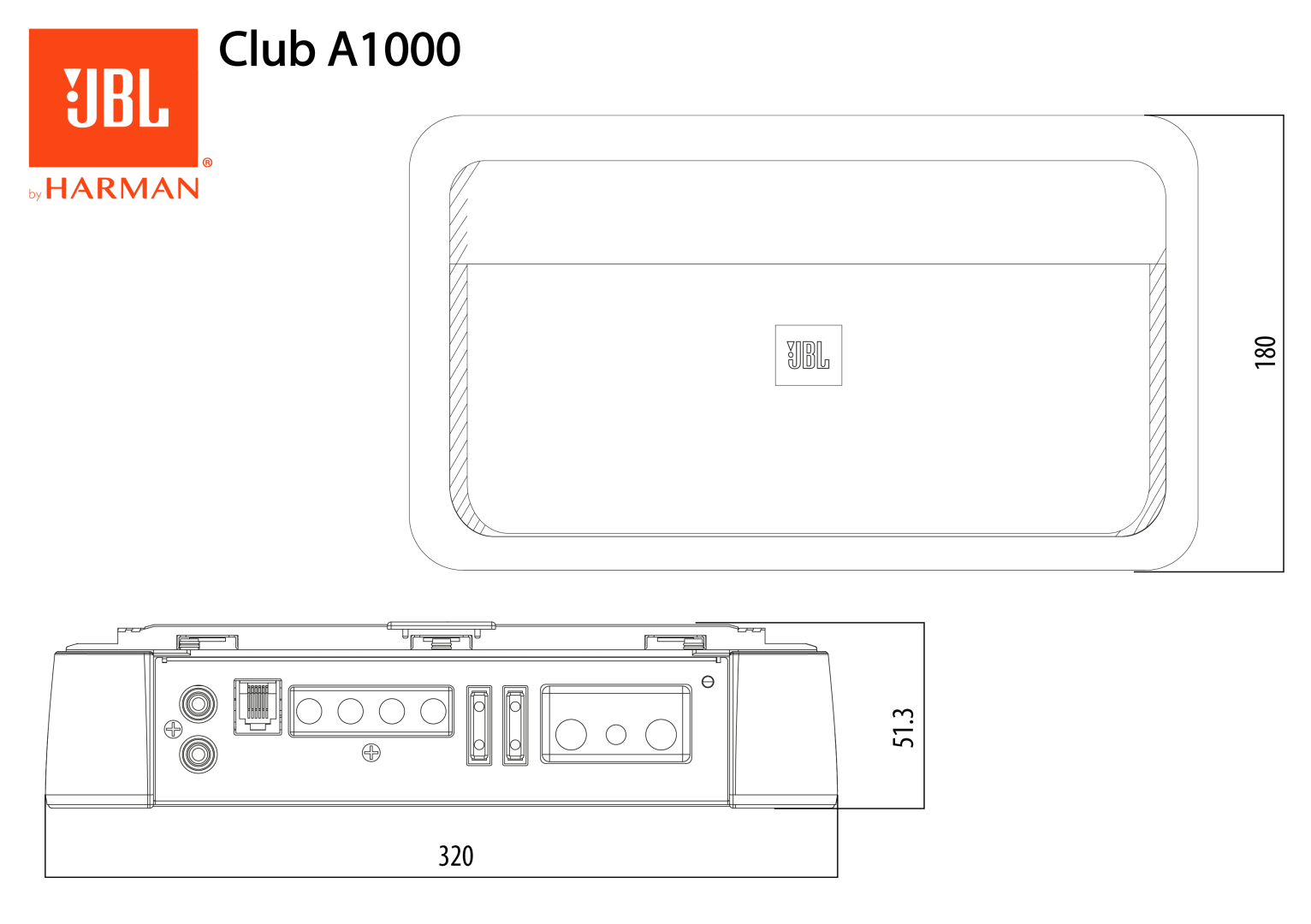

- Compact Design: The JBL® Club A1000 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles with limited space.
- High- and Low-Level Inputs: Speaker-level and low-level inputs allow the JBL® Club A1000 to integrate with most factory or aftermarket stereo systems.
- Variable Crossover and Bass Boost: Unlike many amplifiers available at similar prices, the JBL® Club A1000 features variable electronic crossovers and bass boost circuitry allowing for fine-tuning system performance.
- Low Noise and Distortion: The Club A1000 was engineered using Balanced Differential Inputs to keep noise and distortion low even at high output levels. This also makes it far less susceptible to line-induced radiated engine noise.
- Input Level Control: When low-level inputs are used, this control adjusts input sensitivity between 200mV RMS and 2.0V RMS. When high-level inputs are used, this control adjusts input sensitivity between 2V RMS and 20V RMS.
- Full Onboard Protection: An onboard circuit protects the Club A1000 from shorts, over-temperature, over-voltage and under-voltage. An LED indicator lets you know when one of these conditions occurs.
- Phase Switch: This switch changes the input phase inversion between inverted and non-inverted. This is especially helpful when optimizing the system, based on enclosure type and vehicle placement.
- RBC Wired Remote: The RBC wired remote is easy to install and can be mounted for convenient level control from the driver’s seat.
- Daisy-Chainable for up to 2,000 Watts of Power at 4 Ohms: Two Club A1000 amplifiers can also be daisy-chained to deliver double the power. The primary amplifier will have master control over the secondary in terms of crossover points, gain, and remote turn-on.
- Class-D Amplifier Technology: The JBL® Club A1000 mono subwoofer amplifier delivers 1000 Watts RMS utilizing a Class-D amplifier design to ensure high output and minimal current draw.
- Turn-On Mode: This "Turn On Mode" switch toggles from DC to REM to accommodate low-level and high-level signals. This is especially helpful with a remote turn-on lead. A selectable "turn-on mode" can protect the battery from draining if the amplifier is left on for a while without any signal.
