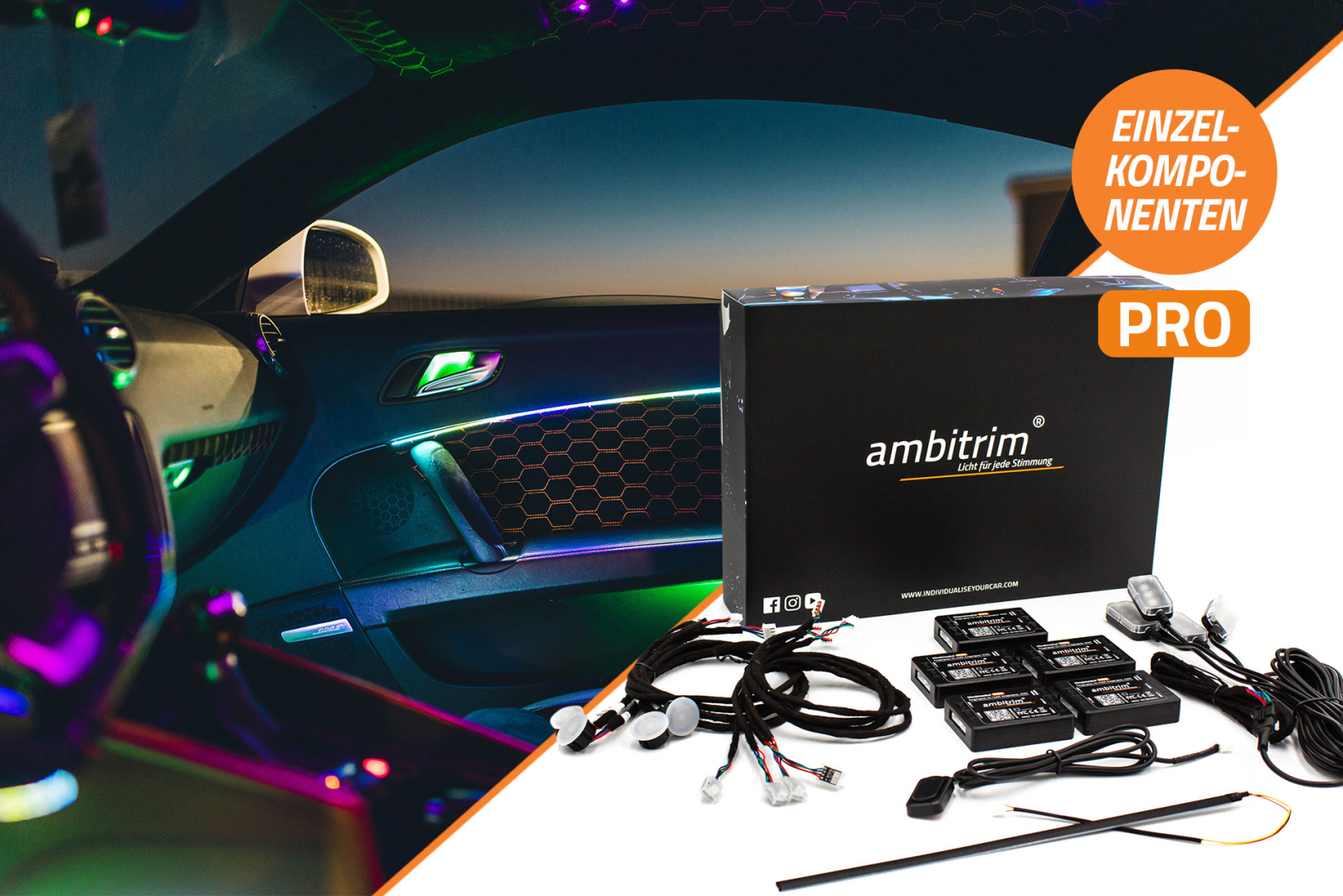

Here you can order individual components or directly create a custom set of our ambitrim® Digital PRO RGB RGBIC LED ambient lighting!
The new flagship in ambient lighting from our house!
1 year ambitrim® Digital RGB RGBIC LED ambient lighting: Time for an upgrade
From now on, we offer the PRO version, where we provide you with a 2-zone control and various welcome programs. Of course, you can now also switch the welcome program on and off as you like.
Features:
- Light strips can be shortened
- 2-zone control (Zone 1 = footwell, door handle, compartment lighting, Zone 2 = light strips and ventilation duct lighting)
- Selectable welcome program
- Blends discreetly into the interior
- Completely silent in operation

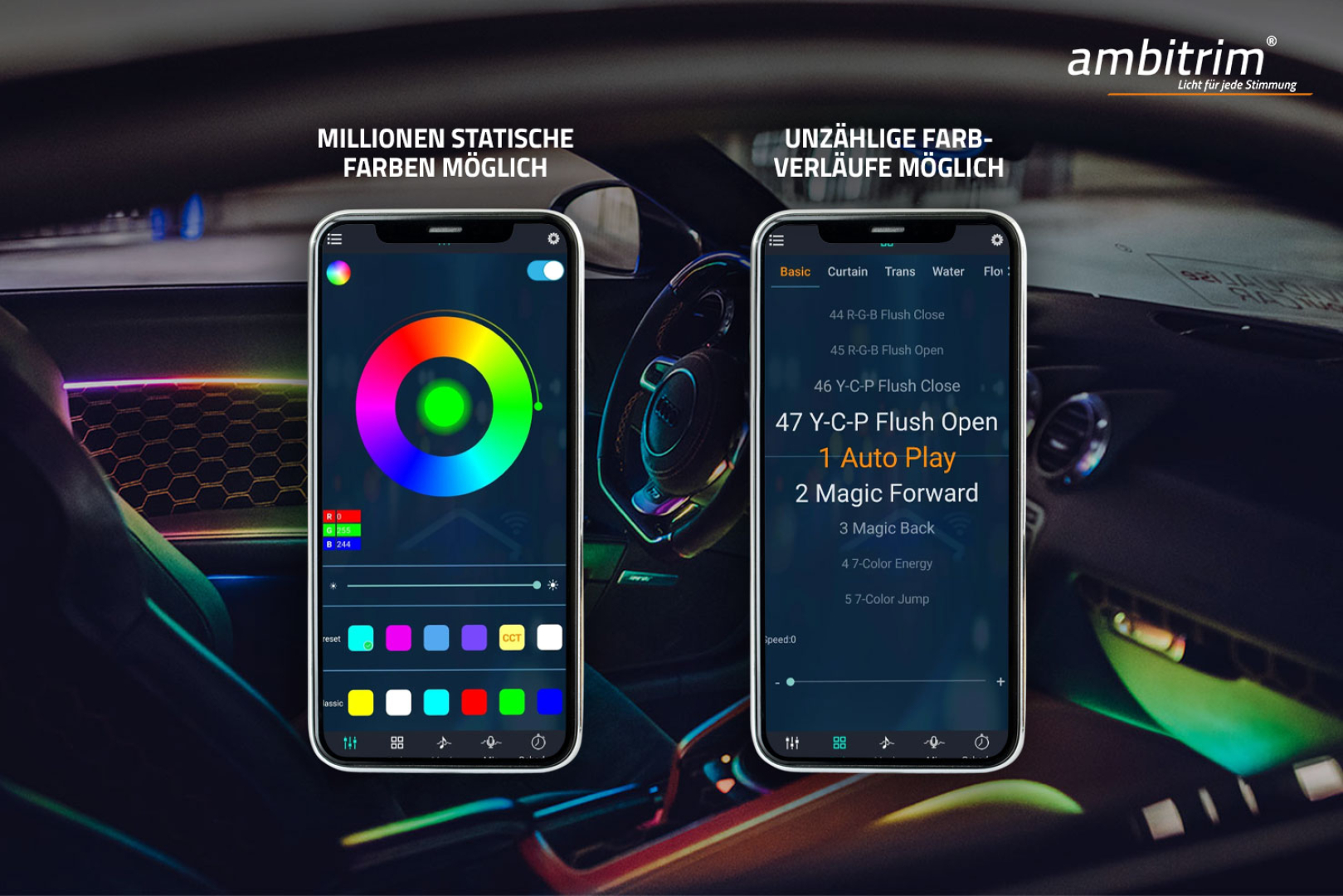

- Color change function via app control
- Digital LED = each LED individually controlled
- Countless color transitions possible
- Millions of static colors available
- Easily reversible at any time!
- Adds an individual touch to your vehicle
- Approved as interior lighting within the scope of road traffic regulations (StVO)
- 0807 LED Chips

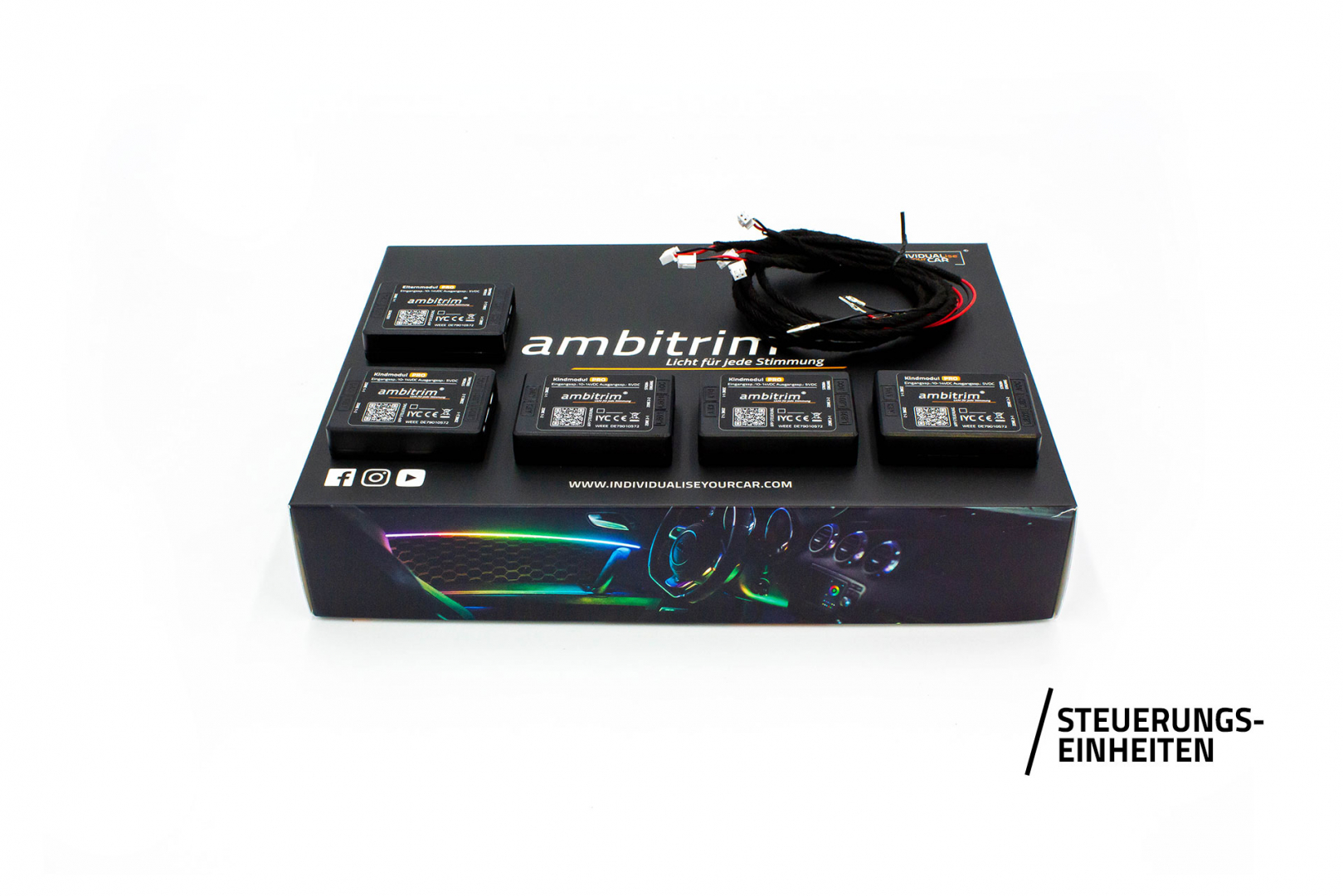

- Individual wireless control units including parent and child units
- thereby no cable connection between them
- Child units can be connected at the point of use, e.g., to the constant power supply (not to the PWM regulated board lighting)
- Child units respond only when the parent unit is turned on (meaning you definitely need one parent unit per car)
Technical Data:
- Voltage: 10-14V DC
- Current consumption: up to 0.5A
The scope of delivery includes the following parts:
| ambitrim® Digital PRO RGB LED light bars |
as per selection |
| PRO - Footwell lighting |
as per selection |
| PRO - Compartment lighting |
as per selection |
| PRO - Door handle lighting |
as per selection |
| PRO - Switch for manual control |
as per selection |
| PRO - 2 in 1 connection cable |
as per selection |
| PRO - 1m extension cable |
as per selection |
| PRO - Halo Ring RGBIC 58mm |
as per selection |
| PRO -Eagle Eye RGBIC |
as per selection |
If possible: By selecting the desired parts (top right next to the "Add to Cart" button), the scope of delivery and the price will be adjusted individually for you.
Fits the following models:
Installation Instructions:
- Our instructions are to be understood as installation ideas. Our ambient lighting is intended to be connected to the car battery or the cigarette lighter socket (in the fuse box). Wiring to the onboard electronics is done at your own risk. Connection to the onboard lighting is NOT possible as most vehicles use a PWM signal to dim the lighting. This damages the color change modules.
- You only need to connect the parent unit to the switched power source (so that the ambient lighting comes on when, for example, the ignition is turned on). You connect the child units to the constant power lines. However, these will only come on when the parent unit gives the "command".
- If you want to drill holes in your door panel (necessary for a few models), drill them at an angle so you don't have to bend ambitrim®.
- All electrical work must be carried out by qualified personnel/workshop.
- Our ambitrim® light bars can be easily glued using plastic adhesive.
- You can find the installation video here: Click me
- For each module, you can connect a maximum of 2x 110cm light bars. If you connect more than that, you will overload the module and it will not work. Of course, it also depends on what else you connect to the module, but it should never be more than 2x 110cm light bars.
- A parent module has 2x connections for light sources, a child module has 4x connections for light sources.
- IMPORTANT: During the very first start of the system, the parent module must be powered before the child modules, as this ensures the learning process runs correctly. Also, please be careful with the cable transitions at the light bars. These are very delicate and can tear quickly if you are somewhat careless during installation.
- For the RGBIC Eagle Eyes, you need to insert the 3 cables into the connector as shown in the picture AFTER you have inserted the Eagle Eye through the drilled hole (6mm). This is necessary because otherwise the connector will not fit through the nut hole, which you use to fix the Eagle Eye in place.
- IMPORTANT: You cannot mix all components of the PRO variant with the regular system. This will not work and will result in a short circuit.
- To connect the PRO light bars to the PRO modules, either the PRO connection cable or the PRO 2 in 1 connection cable is required.
- IMPORTANT: The footwell lighting 1x can only be used as an extension for existing 2x or 4x footwell lighting and CANNOT be directly connected to a module.

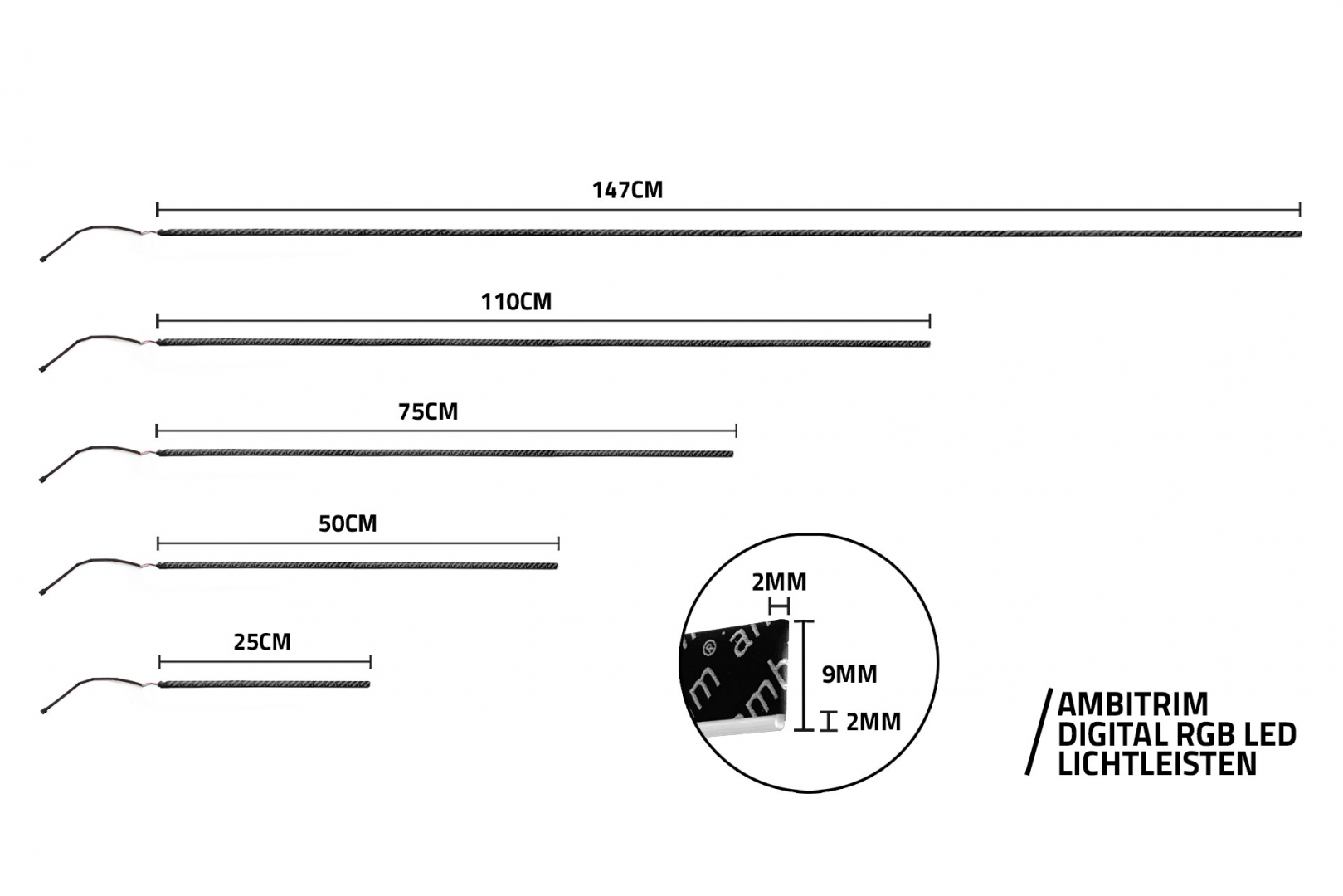

- IMPORTANT: The 147 cm light strips may only be connected to a 50 cm connection cable!
Legal Notices
This item is only permitted inside the vehicle. Outside the vehicle, the item is not allowed within the scope of road traffic regulations (short StVO) (see §22a StVZO).
